Install Outdoor Antenna.
There are 2 types of installations: wall mount or pole mount. Install outdoor panel antenna onto the wall for your reference:
Step 1: Unscrew antenna from L-mounting bracket on antenna base with wrench.
Step 2: Mount vertical plate of the L-bracket on the wall with supplied screws.
Step 3: Screw antenna back onto horizontal plate.
Notes: Wrap waterproof tape around the connectors between outdoor antenna and feeder line to avoid water or other types of damage.
Install Indoor Antenna.
According to your application requirements, please select Indoor panel antenna, or Omni-ceiling antenna as indoor antenna for coverage indoors. An example of how to install indoor panel antenna has been provided below.
Step 1: Select a place on a wall projecting towards an area where you want reception. Normally, to provide an overall coverage, you will need to choose a corner.
Step 2: Mount the bracket on the wall after drilling the screw to the wall.
Step 3: Put the panel antenna on the bracket.

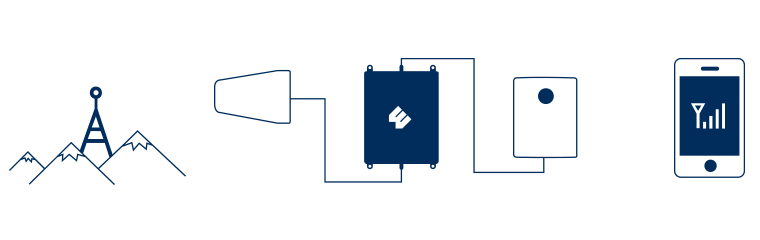

Install The Signal Booster
Step 1: Select an indoor location near to a power outlet on a wall.
Step 2: Mount the booster with the screws included as shown in your user guide or installation manual.
Step 3: Connect outdoor antenna cables to booster connector marked "outdoor". Tighten the connection with hand or wrench if necessary.
Step 4: Connect indoor antenna cables to booster connector marked "indoor". Tighten the connection with hand or wrench.
Step 5: Connect AC power cord to the signal booster, and then connect the plug to electrical outlet to power on the booster or repeater.
In this manner, you can install signal booster in a home, apartment, building or its basement and bunker or in a building with metal roof, concrete walls, and tinted windows.
